Box Coal-fired Heating Boiler with capacity of 160 ~ 400 x 104 Kcal/h
Box Coal-fired Heating Boiler with capacity of 500 ~ 2000 x 104 Kcal/h

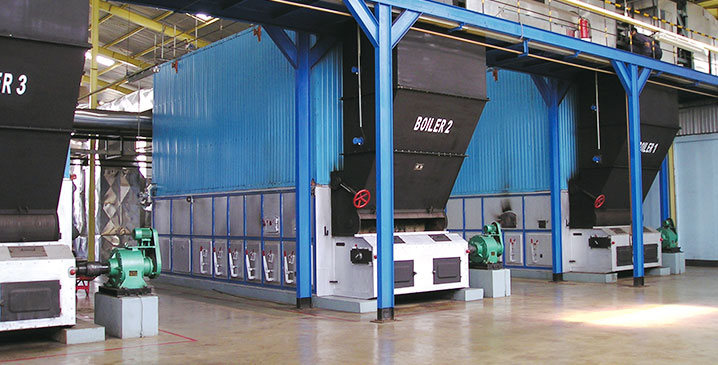

4 sets of Coal-fired Heating Boiler with capacity of 14MW (1200 x 104 Kcal/h) for Xuzhou Fushan
Technical Data Table
Box Coal-fired Heating Boiler with capacity of 160 ~ 400 x 104 Kcal/h
| Project / Model |
YLL-
1900MA |
YLL-
2400MA |
YLL-
3000MA |
YLL-
3500MA |
YLL-
4000MA |
YLL-
4600MA |
| Rated power KW (kcal / hr) |
1900(160) |
2400(200) |
3000(250) |
3500(300) |
4000(350) |
4600(400) |
| Heat efficiency (% ≥) |
73 |
| Pressure (MPa) |
1.0 |
| Max-temperature (℃) |
320 |
| Oil capacity (m3) |
2.0 |
2.5 |
3.0 |
3.8 |
4.40 |
5.0 |
| Fuel cycle (m3/h) |
160 |
200 |
200 |
200 |
200 |
260 |
| Caliber (mm) |
150 |
150 |
150 |
150 |
200 |
200 |
System-wide capacity
(KW)
|
75 |
87 |
87 |
104 |
104 |
145 |
| L |
mm |
5670 |
5670 |
6770 |
6770 |
6770 |
8640 |
| B |
2020 |
2020 |
2500 |
2500 |
2500 |
2590 |
| H |
3930 |
4530 |
4300 |
4500 |
4920 |
5070 |
| A |
3000 |
3000 |
3240 |
3240 |
3240 |
3400 |
| h |
2530 |
3130 |
2900 |
3100 |
3520 |
3300 |
| Total weight |
18.3 |
22 |
27 |
32 |
37 |
42
|
| Project / Model |
YLL-
6000MA |
YLL-
7000MA |
YLL-
9300MA |
YLL-
11630MA |
YLL-
14000MA |
YLL-
16300MA |
YLL-
18600MA |
YLL-
21000MA |
YLL-
23300MA |
Rated power KW
(kcal / hr)
|
600
0(500)
|
7000
(600)
|
9300
(800)
|
11630
(1000)
|
14000
(1200)
|
16300
(1400)
|
18600
(1600)
|
21000
(1800)
|
23300
(2000)
|
| Thermal efficiency (% ≥) |
73 ～ 81 |
| Pressure (MPa) |
1.1 ～ 1.8 |
| Max-temperature (℃) |
HTF is equipped with: 340 ℃,
Equipped with biphenyl as: 385 ℃ |
| Oil capacity (m3) |
6.3 |
7.5 |
10 |
13 |
16 |
18 |
21 |
23.5 |
26 |
| Fuel cycle (m3/h) |
260 |
300 |
400 |
600 |
600 |
700 |
800 |
900 |
1000 |
Diameter pipe
connection (mm)
|
200 |
200-250 |
250 |
300 |
300 |
300 |
350 |
350 |
400 |
System-wide capacity KW
(1200 kcal / h above the furnace
does not include the circulation pump)
|
158 |
173 |
270 |
310 |
350 |
230 |
250 |
270 |
290 |
| L |
mm |
8640 |
8640 |
9200 |
10300 |
10300 |
12000 |
12500 |
13500 |
14500 |
| B |
3000 |
3010 |
3330 |
3750 |
3750 |
3950 |
4760 |
5800 |
5800 |
| H |
5450 |
5450 |
5600 |
6050 |
8300 |
10000 |
8350 |
10700 |
11700 |
| A |
3760 |
3760 |
4200 |
4500 |
4500 |
— |
— |
— |
— |
| h |
3450 |
3450 |
3600 |
3700 |
5900 |
7000 |
5350 |
7000 |
8000 |
| Total weight |
51 |
61 |
80 |
100 |
133 |
160 |
200 |
230 |
260 |
|
