Coal-fired Molten Salt Heating Boiler

admin Source: Date:2014-03-13 16:25:39 Hits: Label:
Coal-fired Molten Salt Heating Boiler
Oil-fired, Gas-fired Molten Salt Heating Boiler

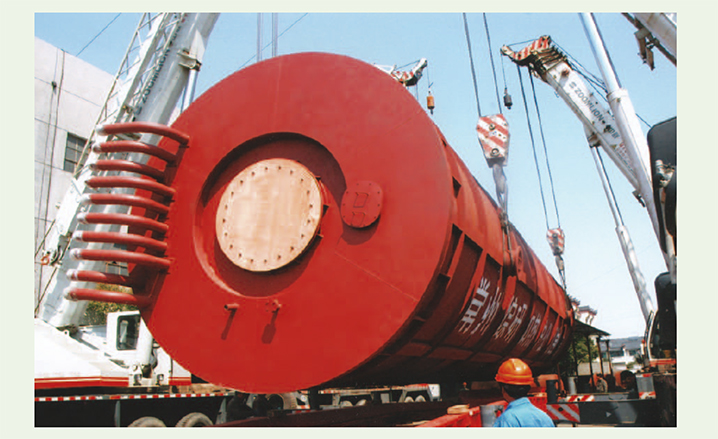

2 sets of Molten Salt Heating Boiler with capacity of 28MW (2600 x 104 Kcal/h) for

Xinjiang Yuxiang are under delivery



Technical Data Table

Coal-fired Molten Salt Heating Boiler

Project / Model YLL -
1400MA
YLL -
2400MA
YLL -
3500MA
YLL -
7000MA
YLL -
9300MA
YLL -
14000MA
YLL -
16300MA
YLL -
23300MA
Rated power KW (kcal / hr) 1400
(120)
2400
(200)
3500
(300)
7000
(600)
9300
(800)
14000
(1200)
16300
(1400)
23000
(2000)
Heat efficiency (% ≥)
59-70(不包括烟气余热利用) 73-81(包括烟气余热利用)
Pressure (MPa) 1.0 1.0~2.2
Max-temperature (℃) 450
Heat transfer medium
(molten salt ingredients)
KNO3 = 53% NaNO2 = 40% NaNO3 = 7%
Caliber (DN) 125 125 150 250 250 400 350 400
System-wide capacity KW
(Excluding the molten salt circulating pump)
25 40 48 112 140 250 200 300
L mm 4850 6800 7534 8680 10000 12000 11500 12000
B 6200 8700 8400 12850 13500 18400 15300 13500
A 2060 2880 3010 3480 3600 4260 4100 5800
B 2020 2500 2920 3330 4300 5250 5200 5800
Total weight 19 30 40 85 120 240 200 280



Oil-fired, Gas-fired Molten Salt Heating Boiler

Project / Model RYQ(Y)-
580MA
RYQ(Y)-
7000MA
RYQ(Y)-
8150MA
RYQ(Y)-
9300MA
RYQ(Y)-
MA
RYQ(Y)-
MA
RYQ(Y)-
MA
Rated power KW (kcal / hr) 580
(50)
7000
(600)
8150
(700)
9300
(800)
11630
(1000)
23300
(2000)
28000
(2400)
Thermal efficiency (% ≥)
(Including flue gas
waste heat utilization)
88 ~ 92
Pressure (MPa) 1.0 ~ 1.5
Max-temperature (℃) 450
Heat transfer medium
(molten salt ingredients)
KNO3 = 53% NaNO2 = 40% NaNO3 = 7%

Molten salt circulation rate

(m3 / h)

50 300 360 400 800 900 1150

Diameter pipe connection

 (mm)

100 250 250 300 350 400 450
H mm 5200 10000 10500 11500 15500 17500 19600
A 1450 3550 3650 3700 4000 4800 4850
Total weight 4 45 50 57 86 126 150

Note:

The data shown in the above table is only for reference because the products are continuously updated. The actual data shall be determined in technical discuss and business talks.

Changzhou Zongyan can supply oil-fired and gas-fired molten heating boiler. The heat load of single-unit reaches more than 1200 x 104 Kcal/h. Welcome to visit and talk.
