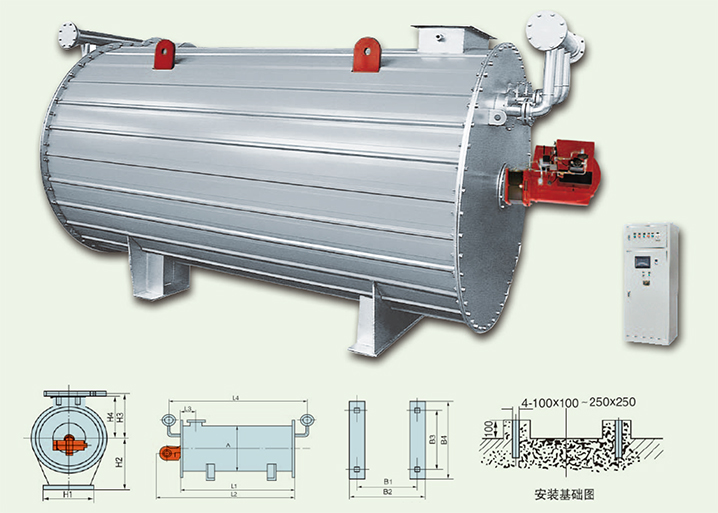

Horizontal Oil, Gas-fired Heating Boiler with capacity of 15 ~ 1200 x 104 Kcal/h
6 sets of Gas-fired Heating Boiler with capacity of 8000KW (700 x 104 Kcal/h) for
National Key Project - pipeline transmitting oil from western area to East China
Technical Data Table
Horizontal Oil, Gas-fired Heating Boiler with capacity of 15 ~ 1200 x 104 Kcal/h
| Project / Model |
YY(Q)W
180Y(Q) |
YY(Q)W
300Y(Q) |
YY(Q)W
350Y(Q) |
YY(Q)W
600Y(Q) |
YY(Q)W
850Y(Q) |
YY(Q)W
1200Y(Q) |
YY(Q)W
1400Y(Q) |
Rated
Power |
KW |
180 |
300 |
350 |
600 |
850 |
1200 |
1400 |
| 万大卡/ 小时 |
15 |
25 |
30 |
50 |
75 |
100 |
125 |
| The fuel |
Light oil, heavy oil, natural gas
ow calorific value gas
|
| Thermal efficiency (% ≥) |
86 ～ 92 |
| Design pressure (MPa) |
1.0 |
| Max-temperature (℃) |
350 |
| Oil capacity (m3) |
0.07 |
0.14 |
0.24 |
0.4 |
0.52 |
0.76 |
0.95 |
| Fuel cycle (m3/h) |
20 |
40 |
40 |
80 |
80 |
100 |
100 |
| Connection diameter (DN) |
50 |
65 |
100 |
100 |
100 |
125 |
125 |
System-wide
capacity (KW)
|
Oil |
11 |
14 |
14 |
22 |
22 |
40 |
40 |
| Gas |
11 |
17 |
17 |
27 |
40 |
40 |
42 |
Dimensions
(mm) |
A |
1000 |
1022 |
1043 |
1129 |
1237 |
1344 |
1452 |
| L1 |
1538 |
1590 |
2200 |
2720 |
2950 |
3415 |
3920 |
| L2 |
2038 |
2090 |
2700 |
3370 |
3600 |
4065 |
4620 |
| L3 |
300 |
320 |
320 |
340 |
360 |
380 |
405 |
| L4 |
2040 |
2100 |
2700 |
3220 |
3450 |
3965 |
4470 |
| H1 |
800 |
772 |
793 |
879 |
937 |
1044 |
1152 |
| H2 |
700 |
711 |
722 |
765 |
818 |
872 |
926 |
| H3 |
650 |
711 |
722 |
765 |
868 |
922 |
926 |
| H4 |
565 |
576 |
587 |
630 |
683 |
737 |
801 |
| Total weight |
1.30 |
1.80 |
2.40 |
3.10 |
4.20 |
6.00 |
7.10 |
Basic dimensions
(mm) |
B1 |
923 |
954 |
1320 |
1632 |
1770 |
1878 |
2156 |
| B2 |
1123 |
1154 |
1520 |
1832 |
2020 |
2178 |
2406 |
| B3 |
700 |
715 |
730 |
790 |
866 |
941 |
1016 |
| B4 |
920 |
935 |
950 |
1010 |
1086 |
1161 |
1236 |
| Project / Model |
YY(Q)W
1800Y(Q |
YY(Q)W
2400Y(Q) |
YY(Q)W
3000Y(Q) |
YY(Q)W
3500Y(Q) |
YY(Q)W
4600Y(Q) |
YY(Q)W
6000Y(Q) |
YY(Q)W
7000Y(Q) |
YY(Q)W
9400Y(Q) |
YY(Q)W
12000Y(Q) |
YY(Q)W
14000Y(Q) |
Rated
Power |
KW |
1800 |
2400 |
3000 |
3500 |
4600 |
6000 |
7000 |
9400 |
12000 |
14000 |
| Million kcal / hr |
150 |
200 |
250 |
300 |
400 |
500 |
600 |
800 |
1000 |
1200 |
| The fuel |
Light oil, heavy oil, residual oil,
natural gas, low calorific value gas,
can be equipped with proper industrial combustible fuel Chi deflated
|
| Thermal efficiency (% ≥) |
86 ～ 92 |
| Design pressure (MPa) |
1.0 |
1.1 ～ 1.7 |
| Max-temperature (℃) |
350 |
Equipped with thermal oil is 350 ℃,
Equipped with biphenyl was 385 ℃ |
| Oil capacity (m3) |
1.48 |
2 |
2.3 |
2.8 |
4.8 |
6.8 |
8.9 |
12.9 |
17 |
25 |
| Fuel cycle (m3/h) |
100 |
200 |
200 |
200 |
260 |
260 |
300 |
400 |
600 |
750 |
| Connection diameter (DN) |
125 |
150 |
150 |
150 |
200 |
200 |
250 |
250 |
300 |
300 |
System-wide
capacity (KW)
|
Oil |
40 |
66 |
70 |
85 |
85 |
100 |
100 |
150 |
255 |
310 |
| Gas |
45 |
70 |
70 |
85 |
85 |
100 |
100 |
150 |
235 |
295 |
Dimensions
(mm) |
A |
1559 |
1774 |
1989 |
2204 |
2634 |
3064 |
3520 |
3785 |
3890 |
4000 |
| L1 |
4346 |
4646 |
4746 |
5100 |
5900 |
6800 |
7500 |
8800 |
10400 |
12200 |
| L2 |
5046 |
5346 |
5446 |
5900 |
6700 |
7600 |
8300 |
9850 |
11450 |
13250 |
| L3 |
430 |
480 |
530 |
580 |
680 |
780 |
880 |
980 |
1080 |
1200 |
| L4 |
4850 |
5200 |
5300 |
5700 |
6500 |
7400 |
8100 |
9400 |
11400 |
13200 |
| H1 |
1259 |
1374 |
1589 |
1804 |
2034 |
2464 |
2740 |
3005 |
3110 |
3220 |
| H2 |
980 |
1087 |
1145 |
1202 |
1397 |
1612 |
1800 |
1953 |
2005 |
2060 |
| H3 |
1030 |
1137 |
1245 |
1352 |
1567 |
1832 |
2060 |
2193 |
2245 |
2300 |
| H4 |
855 |
962 |
1070 |
1177 |
1392 |
1607 |
1835 |
1968 |
2020 |
2075 |
| Total weight |
9.00 |
11.40 |
13.00 |
17.00 |
22.00 |
29.00 |
40.00 |
53 |
69 |
83 |
Basic dimensions
(mm) |
B1 |
2390 |
2555 |
2610 |
2805 |
3245 |
3740 |
3800 |
4459 |
5270 |
6182 |
| B2 |
2640 |
2805 |
2910 |
3205 |
3645 |
4240 |
4300 |
4959 |
5770 |
6682 |
| B3 |
1091 |
1242 |
1392 |
1582 |
1891 |
2200 |
2460 |
2650 |
2723 |
2800 |
| B4 |
1311 |
1462 |
1612 |
1802 |
2111 |
2420 |
2680 |
2870 |
2943 |
3020 |
Note:
The data shown in the above table is only for reference because the products are continuously updated. The actual data shall be determined in technical discuss and business talks. The heat efficiency is the heat efficiency of the system. |
