Vertical Oil (gas)-fired Heating Boiler

admin Source: Date:2014-03-13 16:09:48 Hits: Label:
Vertical Oil (gas)-fired Heating Boiler with capacity of 300 ~ 1250 x 104 Kcal/h







Technical Data Table

Vertical Oil (gas)-fired Heating Boiler with capacity of 300 ~ 1250 x 104 Kcal/h
Project / Model YY(Q)L-
3500Y(Q)
YY(Q)L-
4600Y(Q)
YY(Q)L-
6000Y(Q)
YY(Q)L-
7000Y(Q)
YY(Q)L-
9400Y(Q)
YY(Q)L-
项 目 12000Y(Q)
YY(Q)L-
14000Y(Q)
YY(Q)L-
14500Y(Q)
Rated
Power
(KW) 3500 4600 6000 7000 9400 12000 14000 14500
Million kcal / hr 300 400 500 600 800 1000 1200 1250
Pressure (MPa) 1.0 1.0 1.0 1.10 1.10 1.3 1.3 1.3
Max-temperature (℃) 350℃ 350℃ 350℃

Equipped with thermal oil is 350 ℃,

equipped with biphenyl was 385 ℃

Heat efficiency (% ≥) 88 ~ 92 88 ~ 92
The fuel

Light oil, heavy oil, residual oil, natural gas,

 low calorific value gas, Can be equipped with proper

 industrial fuel gas and other combustible Chi release

Heavy oil, residual oil, natural gas,

 low calorific value gas, Can be equipped with proper

industrial fuel gas and other combustible Chi release

Oil capacity (m3) 2.8 4.8 6.8 8.9 12.9 17 25 28
Fuel cycle (m3/h) 200 260 260 300 400 600 750 800
Caliber (DN) 150 200 200 250 250 300 350 400

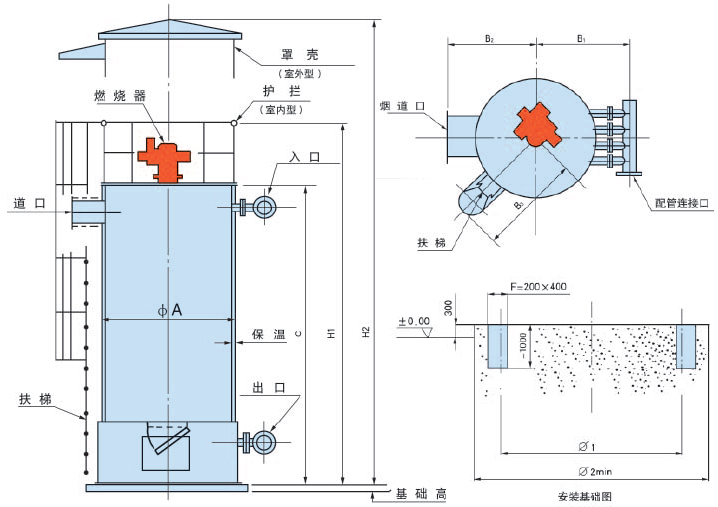

Dimensions
(mm)
φA 2500 2800 3000 3200 3500 3860 3960 4150
B1 1700 1850 1950 2050 2200 2360 2410 2500
B2 1350 1500 1600 1670 1820 2000 2050 2150
B3 2320 2470 2570 2670 2820 3050 3100 3200
C 6100 6900 7800 8500 10200 12200 14000 15000
H1 7200 8000 8900 9600 11400 13400 15200 16200
H2 8300 9100 10000 10900 12600 14700 16500 17500
Total weight 17 22 29 41 54 70 85 90
Basic dimensions
(mm)
φ1 2563 2863 3075 3300 3600 3700 3700 3700
φ2min 3500 3800 4400 4800 5500 6860 7460 7650
h 8 12 12 18 18 24 24 24

Fitted electromechanical

power

Fuel KW 85 85 100 100 150 255 310 355
Gas KW 85 85 100 100 150 255 295 355

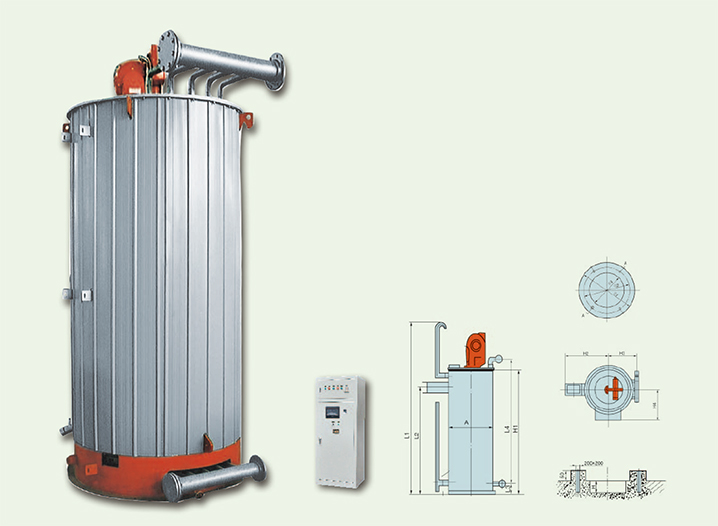

Vertical Oil (gas)-fired Heating Boiler with capacity of 15 ~ 250 x 104 Kcal/h
Project / Model YY(Q)L
180Y(Q)
YY(Q)L
300Y(Q)
YY(Q)L
350Y(Q)
YY(Q)L
600Y(Q)
YY(Q)L
850Y(Q)
YY(Q)L
1200Y(Q)
YY(Q)L
1400Y(Q)
YY(Q)L
1800Y(Q)
YY(Q)L
2400Y(Q)
YY(Q)L
3000Y(Q)
Rated
Power
KW 180 300 350 600 850 1200 1400 1800 2400 3000
Million kcal / hr 15 25 30 50 75 100 125 150 200 250
The fuel

Light oil, natural gas, low calorific value gas,

 can be equipped with proper industrial combustible fuel Chi deflated

Light oil, heavy oil, natural gas, low calorific value gas,

Can be equipped with proper industrial combustible fuel

Max-temperature (℃) 350℃ 350℃ 350℃

Equipped with thermal oil is 350 ℃

 Equipped with biphenyl was 385 ℃

Heat efficiency (% ≥) 86 ~ 92
Pressure (MPa) 1.0
Max-temperature (℃) 350
Oil capacity (m3) 0.07 0.14 0.24 0.4 0.52 0.76 0.95 1.48 2 2.3
Fuel cycle (m3/h) 20 40 40 80 80 100 100 100 200 200
Links caliber (DN) 50 65 100 100 100 125 125 125 150 150
System-wide
capacity (KW)
Oil 11 14 14 22 22 40 40 40 66 70
Gas 11 17 17 27 40 40 42 45 70 70
Dimensions
(mm)
A 900 1100 1250 1470 1670 1940 1940 2040 2200 2400
L1 2300 2350 3600 3690 3900 4600 5210 5570 6420 6520
L2 1470 1570 2090 2580 2870 3325 3800 4680 4790 4890
L3 160 160 160 160 180 200 200 400 450 450
L4 1800 1900 2000 2500 2820 3795 4400 5050 5100 5400
H1 1838 1890 2500 3020 3350 3795 4300 5346 5446 5546
H2 1000 1080 1220 1225 1380 1500 1550 1600 1700 1800
H3 600 750 820 780 1000 1100 1250 1250 1300 1400
H4 660 800 825 835 1300 1420 1450 1550 1620 1720
Total weight 1.30 1.71 2.38 3.71 4.90 6.10 7.78 9.20 11.40 13.80
Basic dimensions
mm
φ1 1226 1430 1580 1630 1910 2220 2220 2380 2600 2800
φ2 965 1170 1300 1350 1640 1890 1940 2100 2300 2500
φ3 - - - - - - - 1700 1900 2100
H - - - - - - - 450 450 450
Note:
The data shown in the above table is only for reference because the products are continuously updated. The actual data shall be determined in technical discuss and business talks. The heat efficiency is the heat efficiency of the system.
