Organic Heat-carrier Heating Boiler/Flue-gas Waste Heat Recovery Energy-saving System

admin Source: Date:2014-03-17 15:09:37 Hits: Label:


Description of Product

For more than twenty years, the heat-transferred media boiler has found the wide application in textile printing and dyeing, chemical industry, artificial leather, building mateiral industries. However, its high return oil temperature with 200 ~ 250℃ causes the high funnel temperature of boiler. In general, it reaches 300 ~ 350℃ . Thus a large amount of calorific capacity is exhausted into atomospher. In the time when energy shortage is a very serious problem and the price of energy rises in the world, energy saving and environmental protection is the urgent needs for sustained development in many countries.
Changzhou Zongyan has addressed itself to the comprehensive utilization of energy source and would like to provide utilization scheme and project of multile low temperature exhaust heat.

The pressure of heat recovery boiler is 0.7 – 2.5MPa. The evaporation rate is determined in accordance with the waste heat from flue gas. The form and structure of boiler can be designed and manufactured in accordance with user’s site and the requirement of design institute.

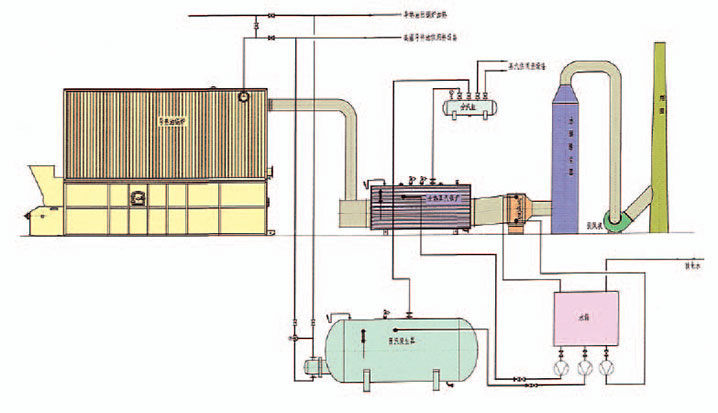

Installation Flow Diagram




Analysis of Energy-saving Effect for Waste Heat Recovery of HTM Heating Boiler

Oil furnace size (million kcal / h)
120
200 300 400 600 800 1000 1200
Oil furnace exhaust gas temperature (℃)
350 350 350 350 350 350 350 350
Oil furnace exhaust volume (Nm3 / h) 2800 4600 7000 9300 14000 19000 23000 28000
Waste heat boiler steam pressure (MPa) 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
HRSG steam production (t / h) 0.27 0.44 0.65 0.87 1.34 1.83 2.23 2.73
Equipped with a waste heat boiler 0.3 0.5 0.8 1 1.5 2.0 2.5 3.0
Dust before the flue gas temperature (℃) 152 150 150 149 146 149 149 147
Annual amount of steam (t) 1944 3168 4680 6264 9648 13176 16056 19656
In economic benefits (million) 38.9 63.3 93.6 125.3 193 263.5 321.1 393.1
Website:

High-efficiency, Energy-saving, Environmental Protection

ChangZhou Zongyan continuously scales the heights and makes efforts for motivating the application technology of heat-carrier boiler to the new top.
